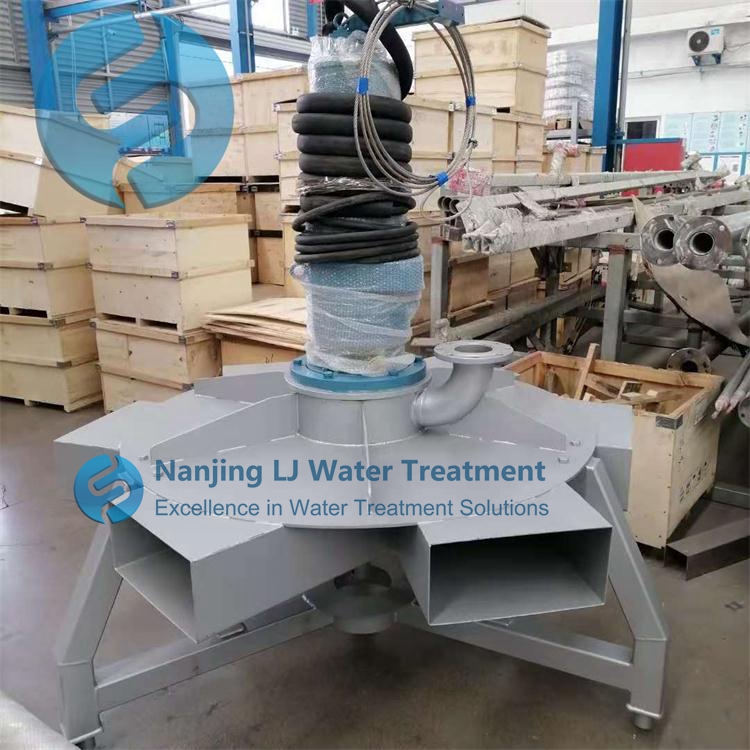

Universal Joint Aeration Mixer Angle Adjustment: How to Get the Flow Direction Right

Most aeration mixers mount at a fixed angle and stay there. That works fine in a uniform basin with predictable flow patterns. But real installations are messy — off-center mounting, uneven tank geometry, changing water levels, and shifting debris patterns all demand a mixer that can point its thrust wherever you need it. Universal joint aeration mixers solve this with an adjustable head that pivots in multiple directions. The catch is that angle adjustment is not just about loosening a bolt and tilting the unit. Get the angle wrong and you waste energy, create dead zones, or overload the drive train.

Why Angle Adjustment Matters More Than People Think

A mixer that points straight down pushes water vertically. Good for deep tanks where you need to break stratification. But in a shallow pond with a slope, vertical thrust just stirs up sediment without moving the bulk water mass horizontally. Tilt the impeller 15 degrees and suddenly the flow pattern changes from a column to a cone — pushing water laterally across the basin floor where oxygen demand is highest.

The angle also affects how the mixer handles debris. A downward-facing impeller catches floating material on top. Tilting it forward lets debris slide off the leading edge instead of wrapping around the hub. In lagoons with seasonal algae blooms, this single adjustment can cut maintenance time in half.

How Thrust Direction Changes With Angle

Every degree of tilt shifts the thrust vector. At zero degrees (straight down), all the force goes into vertical mixing. At 15 degrees, roughly 25 percent of the thrust becomes horizontal. At 30 degrees, that jumps to 50 percent. The impeller still delivers the same total force, but where that force goes changes completely.

This is why you cannot just eyeball the angle. A 10-degree tilt sounds small, but it redirects a significant portion of the mixing energy away from the bottom zone. In a deep tank where the goal is to keep solids suspended near the floor, even a slight upward tilt defeats the purpose.

The sweet spot depends on the application. For bottom suspension in deep basins, keep the angle between 0 and 5 degrees off vertical. For horizontal circulation in shallow ponds, 15 to 25 degrees works best. For lagoons with heavy surface debris, 20 to 30 degrees forward tilt keeps the impeller clear.

The Universal Joint Mechanism and How It Works

The adjustable head on a universal joint mixer is not a simple hinge. It is a spherical or Cardan joint that allows rotation in two axes simultaneously — pitch and yaw. This means you can tilt the impeller up or down and also rotate it left or right, all from a single mounting point.

Pitch Adjustment vs. Yaw Adjustment

Pitch is the up-and-down tilt. This controls whether the impeller pushes water toward the bottom or toward the surface. Most mixers let you adjust pitch between plus and minus 30 degrees from vertical. The adjustment is usually a threaded rod or a rack-and-pinion mechanism locked by a clamp bolt.

Yaw is the left-right rotation. This controls the horizontal direction of the thrust. Yaw adjustment is typically 360 degrees continuous, locked by a separate clamp. Some designs combine pitch and yaw into a single ball-joint head with two locking knobs — one for each axis.

The two adjustments are independent but they interact. Changing the pitch angle shifts the load on the yaw bearing. A heavily tilted mixer puts more side load on the yaw joint, which accelerates wear. This is why you should set the pitch first, then adjust yaw, and never force the joint past its mechanical stop.

Locking Mechanisms That Actually Hold

The angle only matters if it stays put. Vibration from the impeller constantly tries to shift the head back to center. A loose clamp means the angle drifts over days or weeks — and you never notice until the mixing pattern changes and dissolved oxygen drops.

Good universal joint mixers use a split-ring clamp or a cam-lock mechanism that applies even pressure around the joint. Bolts alone are not enough — they create point loads that deform the joint housing over time. A clamp distributes the load and maintains consistent friction on the joint surface.

Check the clamp torque every three months. The vibration settles the joint slightly each week, reducing the clamp pressure. A torque wrench set to the manufacturer spec — usually 15 to 25 newton-meters — keeps the angle locked without over-compressing the joint seal.

Setting the Right Angle for Your Basin

There is no universal perfect angle. The right setting depends on basin shape, water depth, mounting position, and what you are trying to achieve. Getting it right requires understanding how the flow pattern changes with each adjustment.

Shallow Basins Need Forward Tilt

In basins shallower than 3 meters, the impeller should tilt forward — meaning the leading edge points down toward the basin floor at roughly 15 to 20 degrees. This directs the thrust horizontally along the bottom where oxygen demand is highest and solids tend to settle.

A common mistake is mounting the mixer too high above the floor and tilting it down to compensate. The problem is that the water column between the impeller and the floor absorbs much of the thrust energy. The flow spreads out before it reaches the bottom, creating a weak, diffuse current instead of a focused sweep.

Lower the mixer closer to the floor — within 0.5 meters — and use a smaller tilt angle. The thrust arrives at the bottom with more concentrated force and actually moves the sediment instead of just stirring it up.

Deep Tanks Need Near-Vertical Alignment

In tanks deeper than 6 meters, the priority is vertical circulation — pushing oxygen-rich surface water down and returning bottom water to the surface. The impeller should stay within 5 degrees of vertical. Any significant tilt wastes energy on horizontal thrust that does not contribute to stratification breakdown.

The exception is when the mixer is mounted off-center. If the impeller sits near a tank wall, a slight tilt toward the center helps direct flow across the full basin width instead of letting it circulate in a tight loop near the wall. Even in deep tanks, 5 to 10 degrees of yaw adjustment can fix a poor circulation pattern caused by eccentric mounting. Post time：2026-06-03
