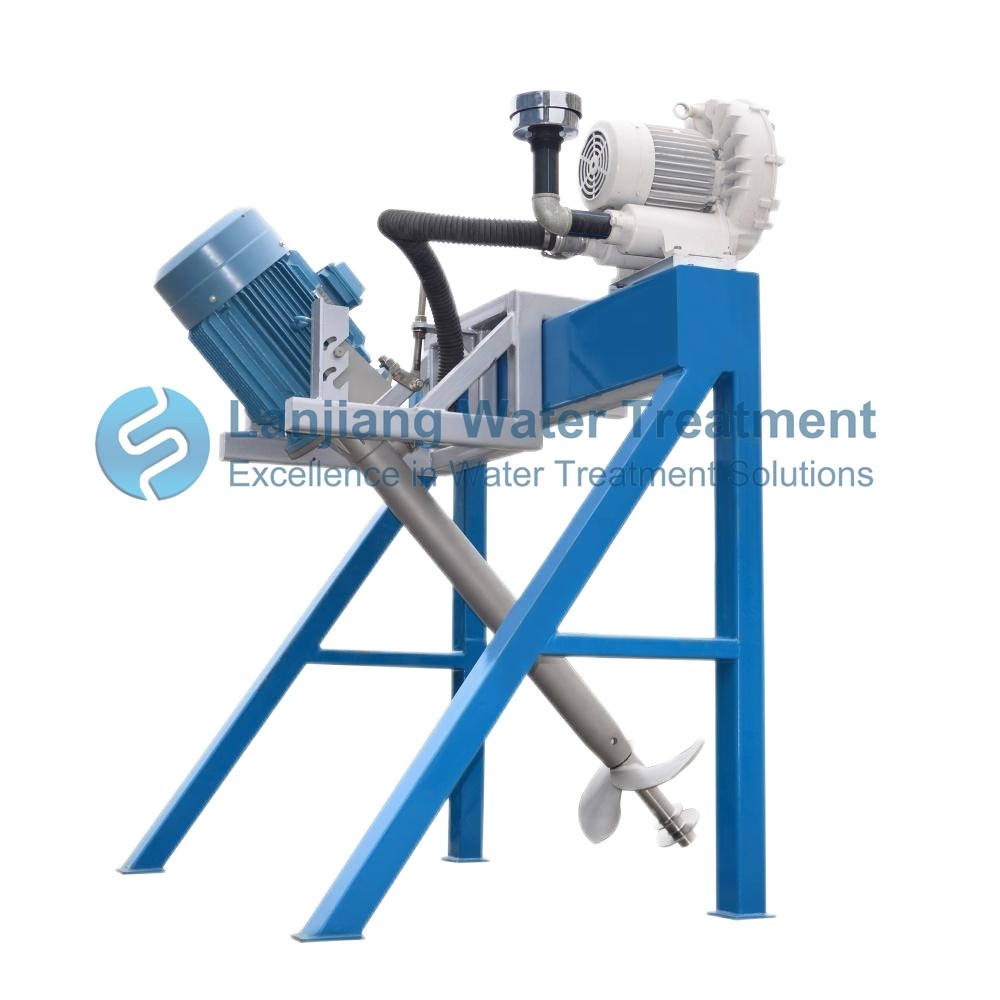

TBQJ Jet surface aerator is new type of aeration equipment with the function of both aeration and mixing. Air, water and sludge can fully mixing and constitute a circulation flow.
It can be widely used for municipal,sewage treatment plant, industrial wastewater treatment. In addition, it is suitable for oxidation ponds and ditches too.
Main Application
Oxidation Ditches (OD): Specifically engineered for oxidation ditch processes. It provides the necessary horizontal velocity to keep activated sludge in suspension while simultaneously delivering high-efficiency aeration to meet oxygen demands.
Aerated Lagoons: Ideal for large-scale municipal or industrial lagoons. Its ability to create a wide circulation zone ensures that oxygen is distributed evenly throughout the entire body of water, preventing "dead zones."
River and Canal Restorations: A critical tool for ecological engineering. It rapidly increases dissolved oxygen (DO) levels in stagnant or polluted water bodies, effectively eliminating odors and restoring the natural aquatic ecosystem.
Aeration Tanks: Used in various biological wastewater treatment stages. The aspirating action creates fine micro-bubbles that maximize the air-to-liquid contact surface, accelerating the breakdown of organic pollutants.
Industrial Wastewater Treatment: Robust enough to handle harsh media in chemical, textile, and food processing plants, especially when customized with high-grade stainless steel or specialized mechanical seals.
Working Principle
TBQJ jet surface aerators form a negative pressure zone in the water through a high-speed rotating impeller, sucking air into the water body. The impellers use shear force to crush the air into tiny bubbles and promotes the directional flow of the air-water mixture.It realizes the triple functions of aeration and oxygenation, flow pushing and sludge mixing at one time.
Features
1. Wet parts can be made of SS304 or SS316.
2. Shaft bushing is made of ceramic with long lifetime.
3. Motor power ranges from 4 kW to 37 kW.
4. No spilling or spraying side effects.
5. Both aeration and mixing are achieved underwater.

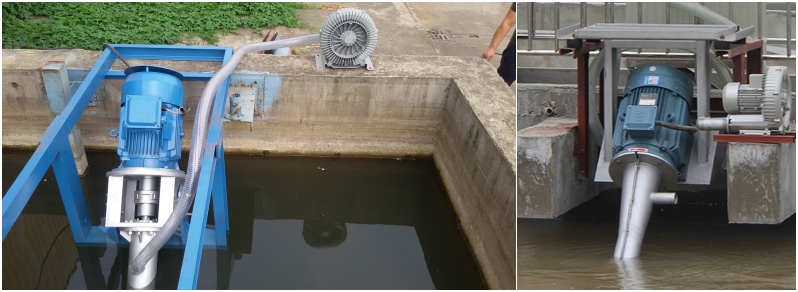

6. Four installation types are available.
7. Continuous circulation flow.
Why Choose Our Aeration Solutions?
As a specialist in water treatment since 2001, we ensure our equipment meets the highest industrial standards:
Integrated Mixing & Aeration: Unlike traditional diffusers, our aerator provides both air injection and strong propulsion in one unit.
Maintenance-Free Design: Submersible operation reduces noise and eliminates the need for complex surface-mounted blowers or air piping.
Customizable Specifications: We offer various power ratings and material options (including Duplex Steel) to match your specific medium characteristics.
Specifications
Model | Power | Flow Pushing Distance(m) | Air Intake | Oxygen Mass Flow (kg/h) | Blower Power | Suitable Depth(m) |
TBQJ-4 | 4 | 7~22 | 160 | 48 | 1.1 | 2~4 |
TBQJ-5.5 | 5.5 | 8~24 | 210 | 62 | 1.5 | 2~4.8 |
TBQJ-7.5 | 7.5 | 10~25 | 330 | 99 | 3 | 2.5~5 |
TBQJ-11 | 11 | 18~35 | 420 | 126 | 4 | 3.5~6.5 |
TBQJ-15 | 15 | 22~45 | 550 | 165 | 5.5 | 4.5~7.5 |
TBQJ-18.5 | 18.5 | 30~55 | 550 | 165 | 5.5 | 4.5~7.5 |
TBQJ-30 | 30 | 35~65 | 700 | 210 | 7.5 | 5~8.5 |
TBQJ-37 | 37 | 40~70 | 700 | 210 | 7.5 | 5~8.5 |

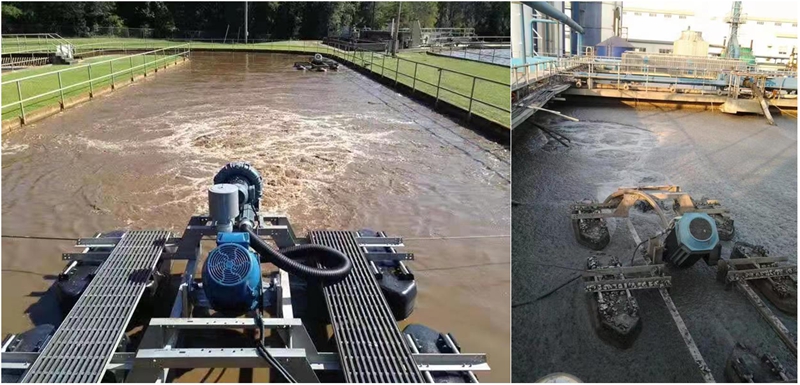

Successful Installations
We have successfully supplied the jet surface aerators to a lot of wastewater treatment plants, including the Hefei Xincheng Sewage Treatment Plant.
