Cost-Effective Wastewater Pre-treatment: Why a Screw Screen is the Smarter Investment

When managing an industrial wastewater project—like our recent installation for a chemical facility in Zibo, Shandong—budget is often the biggest hurdle. If your client needs to reduce both initial capital investment and long-term operational costs, choosing the right screening technology is the first critical decision.

Why Choose a Screw Screen Over Traditional Bar Screens?

In many industrial applications, traditional bar screens require secondary equipment: a conveyor to move the solids and a press to dewater them. For a facility with limited space or a tight budget, this "multi-machine" setup is expensive to buy and maintain.

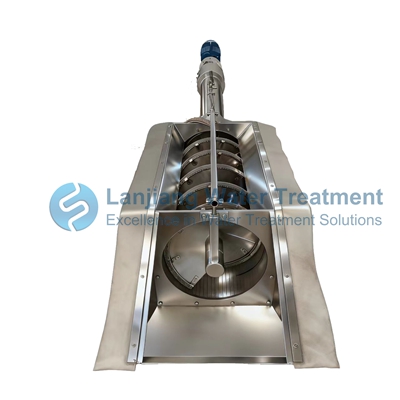

That is why we recommended the Screw Screen (Screw Screening) for this project.

A Screw Screen is a unique 4-in-1 system that integrates:

1. Filtration: Capturing solids as small as 1mm.

2. Washing: Removing organic matter from the screenings.

3. Transporting: Lifting solids out of the channel via a rotating screw.

4. Compacting: Pressing and dewatering the waste before disposal.

By combining these four functions into one stainless steel unit, the client eliminated the need for separate conveyors and presses. This reduced their total investment significantly.

Project Spotlight: Industrial Wastewater in Zibo, Shandong

This specific case involved a high-flow industrial channel. The goal was to achieve clean, odor-free solids recovery while keeping power consumption low.

Technical Specifications:

l Material: Heavy-duty Stainless Steel

l Channel Dimensions: 600mm wide and 2000mm deep

l Capacity: High-volume flow of 130 tons/hour

l Efficiency: Equipped with a 1.1KW motor, providing high torque with very low energy use.

l Performance: The solids are pressed until they reach nearly 40% dry matter content, which drastically lowers waste disposal fees.

The system was installed at a 35-degree angle, allowing the 3800mm long screw to efficiently lift and dewater the screenings in a single, continuous motion.

Is This the Right Solution for You?

If you are a distributor or a project decision-maker looking for a high-reliability, low-maintenance solution, our integrated systems offer the best ROI.

l Looking for a specific model? You can find detailed technical drawings and performance charts on our Screw Screen product page.

l Not sure if a screw system fits your channel? For larger debris or different flow requirements, you may also want to browse our heavy-duty Bar Screen category to compare options.

As a specialized screw screen manufacturer, we focus on engineering solutions that solve real-world problems. Whether you are dealing with organic-heavy industrial waste or simply need to lower your treatment costs, we provide the manufacturing expertise to get it done right.
